Mini Air Saw | SI-4740

$212.43

We currently have 0 in stock.

Features:
  • World’s smallest and lightest air saw
  • Easy to use in tight place
  • This model mechanism is same with the SI-4730. worked by rotary air motor and makes working strokes through the gears
  • Only 5mm strokes and other parts are not damaged
  • Noise levels according to ISO 15744:2008,ISO 11203:2009
  • Vibration level according to ISO 28927
Specification:
  • File Shank Opening, mm/(in.): 5(3/16)
  • Cutting cap(Steel), mm/(in.): 4(5/32)
  • Stroke Length, mm: 5
  • Free Speed, s.p.m.(Stroke Per Minutes): 10,500
  • Output, Watt: 135
  • Weight, kg/(lb): 0.52/(1.15)
  • Noise Level, dBA/(power): 83/(94)
  • Vibration a/k, m/s2: 14.5/1.9
  • Avg.Air Consumption, CFM/(L/S): 1.7/(0.8)

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Piotr Wysocki
Very capable compact airsaw

Was in the market for the smallest possible autobody saw and found this to fit the bill perfectly (there's a few others out there but this is the shortest of them all). Did some research about the brand and also found videos of it being able to get in areas that typically you'd have to lift a vehicle due to airline and length/size of typical airsaws that most people are familiar with. This one also has the added durability and consistent performance of having a gear drive inside so it doesn't stall as easily as a piston driven design when the metal binds the blade.

Highly recommend for areas like cutting rocker areas where the cut leads to the under side of the vehicle and also if you want a shorter stroke (5mm vs 10mm) for more controllable detail cuts where you don't want to cut any underlying structure of a vehicle.

An additional nice touch is that Shinano includes a nice quality 360° swivel attached/preinstalled which allows for even more flexibility and getting hose out the way in tight areas, and saves a few bux on having to buy your own, so just need to add fitting and blade of your choice, a few drops of oil, and get to work.

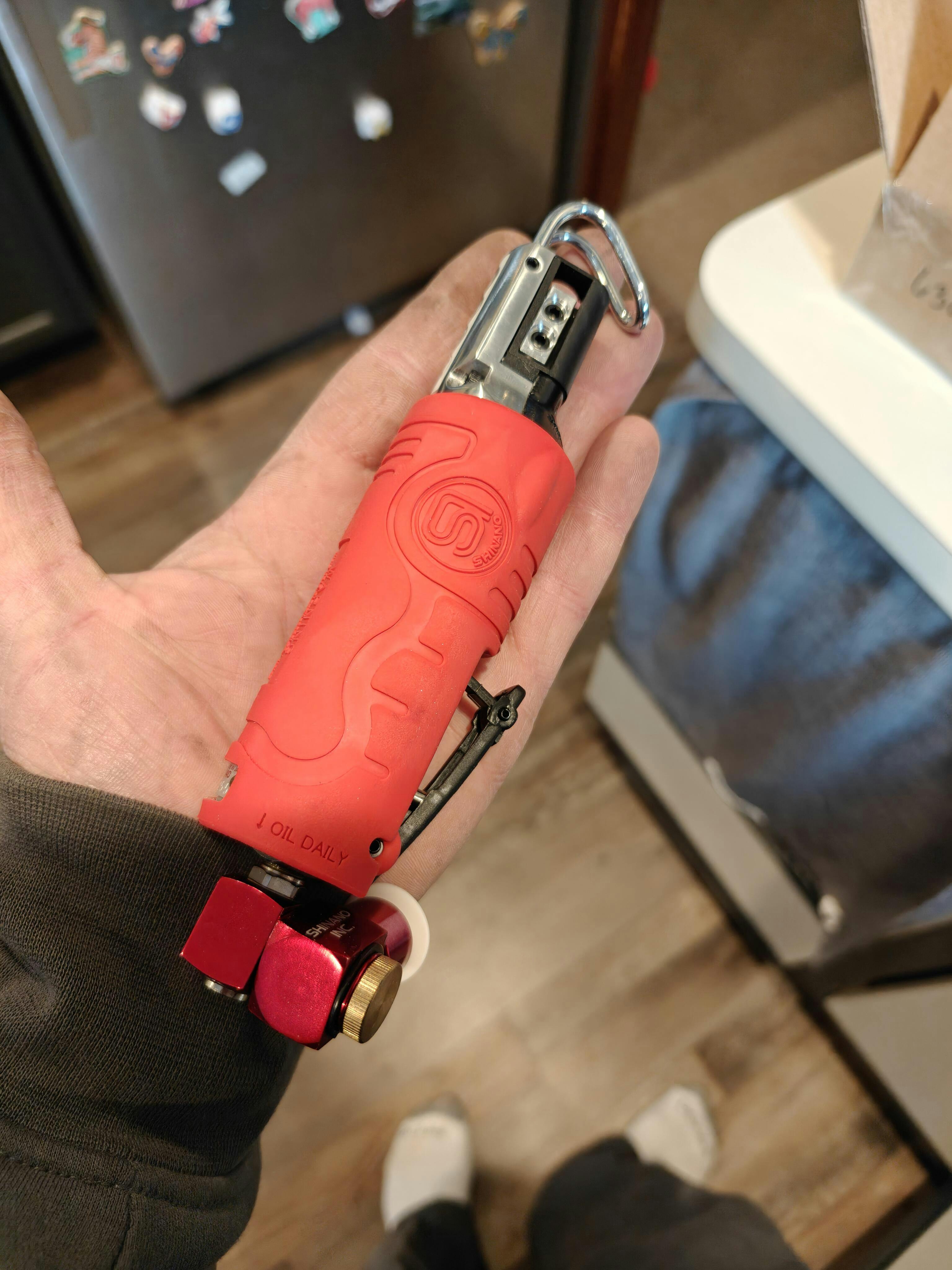

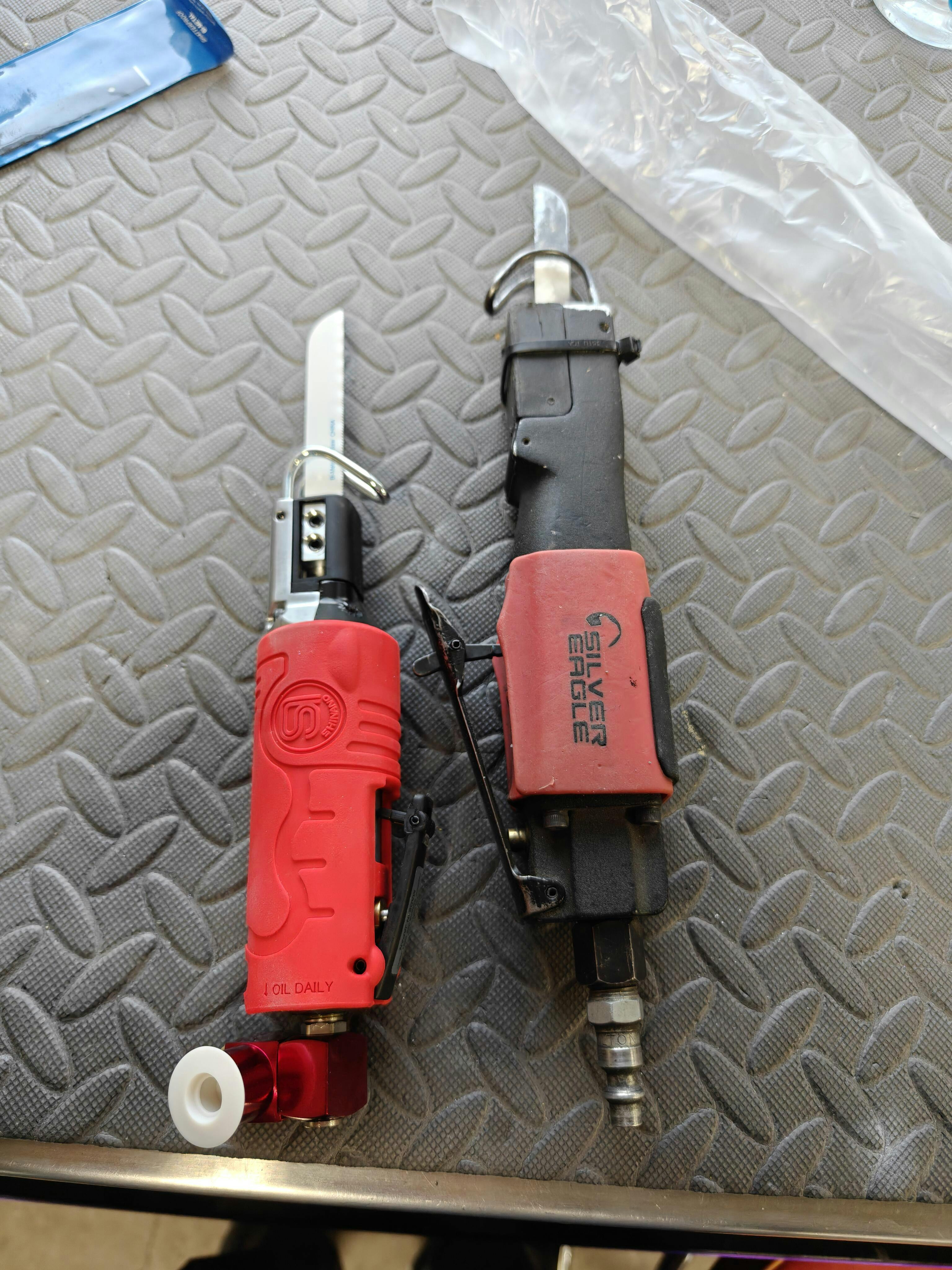

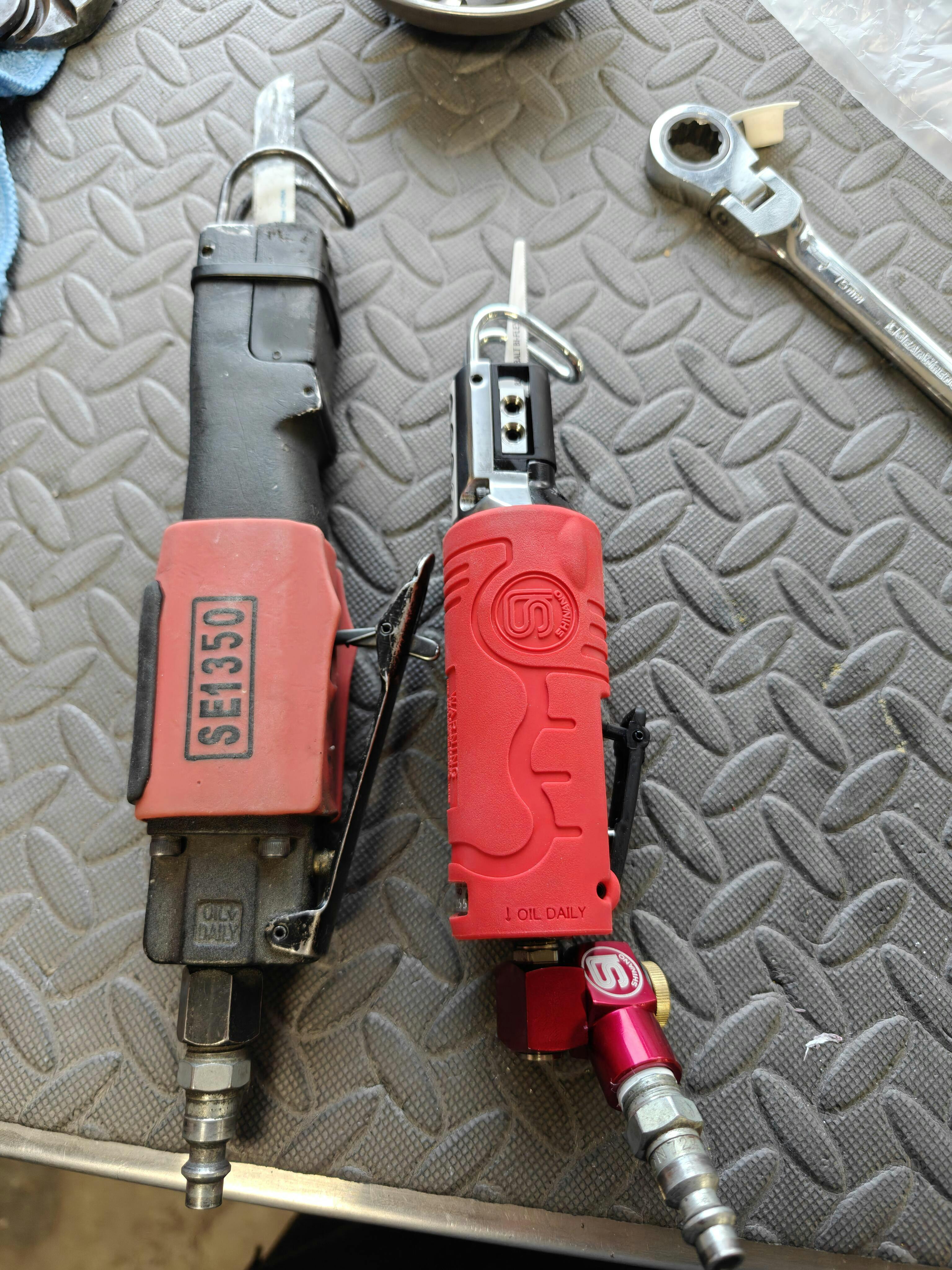

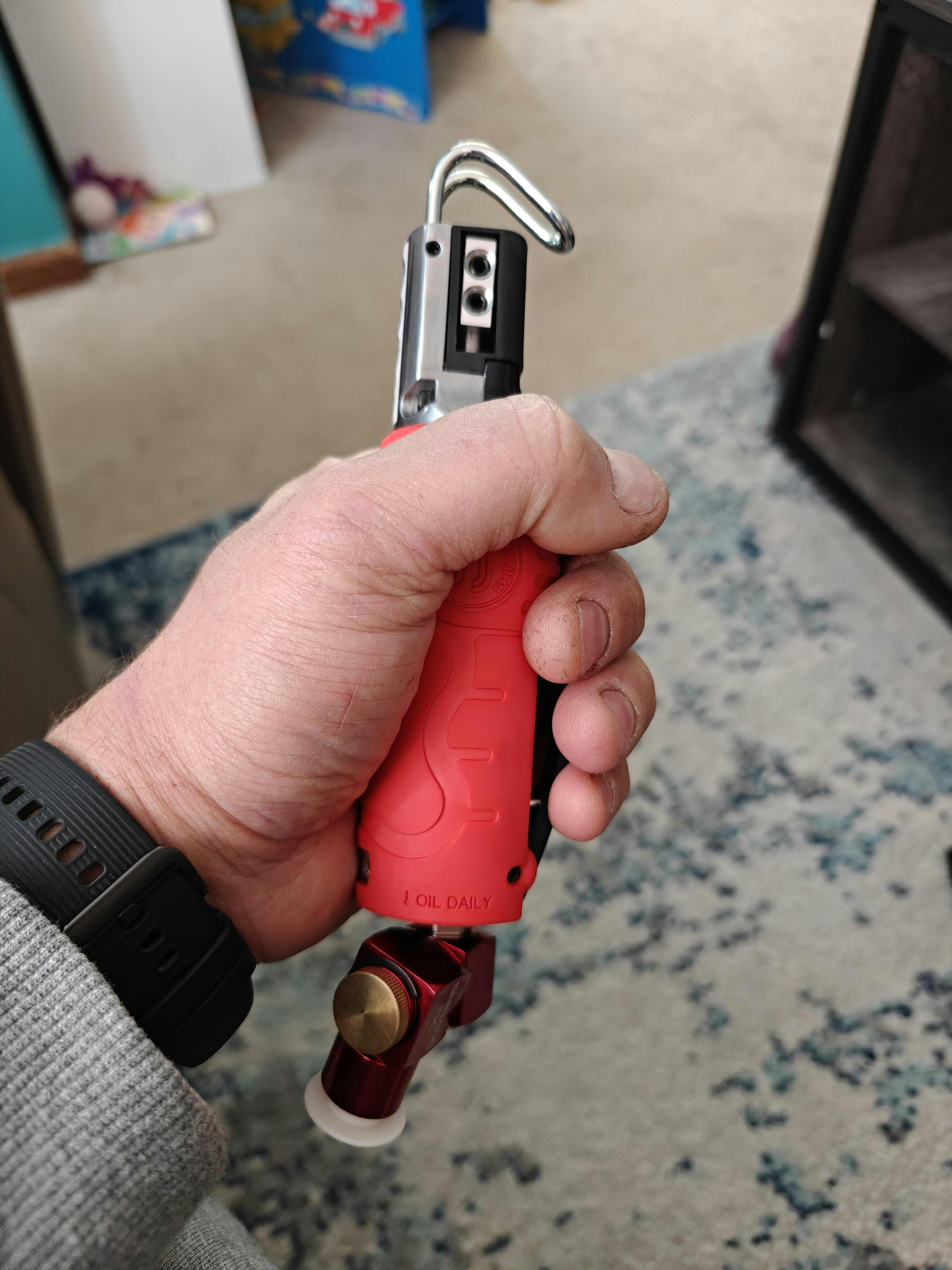

User picture User picture User picture User picture
D
Dan wickett
awesome small saw

very powerful, light and compact.
